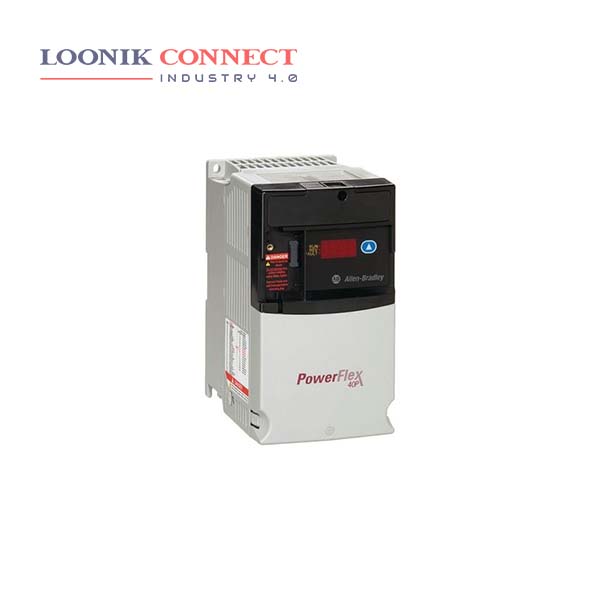

The Allen-Bradley 22D-D4P0N104 is a PowerFlex 40P Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 342-528VAC, 3-phase with applicable motor output of 4.0 A and Power of 1.5kW (2.0 HP). The 22D-D4P0N104 is part of the Allen-Bradley PowerFlex 40P AC drive series. It has 480 Volts 3-phase AC power at 4 Amps, 1.5 kW, and 2 Horsepower. It is suitable for closed-loop control with category 3 safe torque-off. It is cost-effective and it has a compact, flexible design. The drive facilitates control of the motor speed of applications such as diverters, packaging machines, and fiber spinning machines.
The 22D-D4P0N104 drive has many convenient features including 2 partially and 5 fully programmable digital inputs, 1 analog I/O, 1 programmable relay and 2 upto outputs. It comes with a panel mounting for easy installation. It has an IP20 open enclosure that protects it against solid objects as little as 12 millimeters in size. An optional IP30 conversion kit is also provided for more environmental protection. The 22D-D4P0N104 comes with a 4-digit display and Drive Tools SP software for configuration and programming. It can be effectively used in a noisy environment over long distances because it has an RS-485 communication port.
The 22D-D4P0N104 drive has V/Hz, a sensorless vector control, an LCD keypad, and a NEMA/UL Type 4X remote for control flexibility. For operation on ungrounded systems, the MOV can be grounded. Its integral brake resistors are inexpensive and provide dynamic braking capability. The drive also comes with ground fault, motor overload, and transient protection. The 22D-D4P0N104 drive reduces development time by using the Logix controls that simplify parameter and tag programming applications. It has applications in beverage, textile, and automotive industries.
