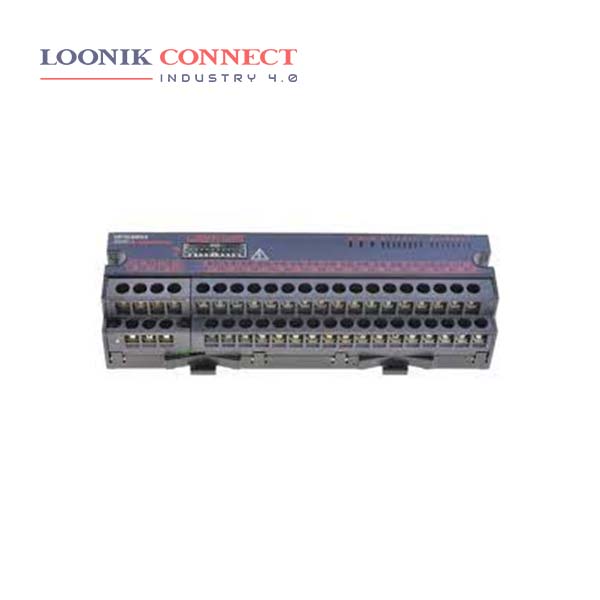

AJ65SBTB2N-16R Mitsubishi CC – Link

Series: CC-LINK
Type: REMOTE RELAY OUTPUT
Power Supply (V): 24
Current Type: DC
Occupied Stations: 1
Integrated Digital Outputs: 16
Output Type: RELAY
Rated Load Voltage (VAC): 240
Rated Load Voltage (VDC): 24
Wiring: SCREW
Int. Current Consumption (A): 0,12
LC Code: LC10012

Availability: In Stock
Get A Free Quote





    Manufacturer Mitsubishi Electric AJ65SBTB2N-16R CC-Link small type remote I / O unit (contact output, terminal block) AJ65SBTB2N-16R Number of output points 16 points Rated switching voltage / current DC 24 V 2A (resistance load)/1 point, AC 240 V 2 A (cos φ = 1)/1 point, 8 A / 1 common Minimum opening / closing load DC 5 V 1 mA Maximum switching voltage AC 264 V DC 125 V lifespan mechanical Over 20 million time Electrical Rated switching voltage . current load 100,000 times or more AC 200 V 1.5 A, AC 240 V 1A (COS φ = 0.7): 100 thousand times or more AC 200 V 1A, AC 240 V 0.5 A (COS φ = 0.35) 100,000 times or more DC 24 V 1A, DC 100 V 0.1 A L / R = 7 ms)100 thousand times or more.

    Maximum switching frequency 3600 times / hour Output response time OFF → ON 10 ms or less ON → OFF 12 ms or les Output common method 16 points 1 common (terminal trapezoid 2 wire type) Output isolation method Relay insulation Withstand voltage Between AC external terminal and ground AC 2830 Vrms / 3 cycles (altitude 2000 m) Between DC external terminals and ground AC 500 V 1 min Insulation resistance AC external terminal all together and ground, DC external terminal collective to ground 500 MV DC insulation resistance meter 10 MΩ or more Station type Remote I / O station.

    Number of occupied stations 1 station Unit power supply Voltage DC 20.4 to 26.4 V (ripple ratio within 5%) Current 120 mA or less (24 VDC, all points ON) External wiring connection method Communication part, unit power supply part 7 points 2 piece terminal block (M3 screw) I / O power supply part, input / output part 34 points Direct mounting terminal block (M3 screw) External dimensions Height (H) 50 mm Width (W)179 mm Depth (D)40 mm mass 0.35 Kg.
