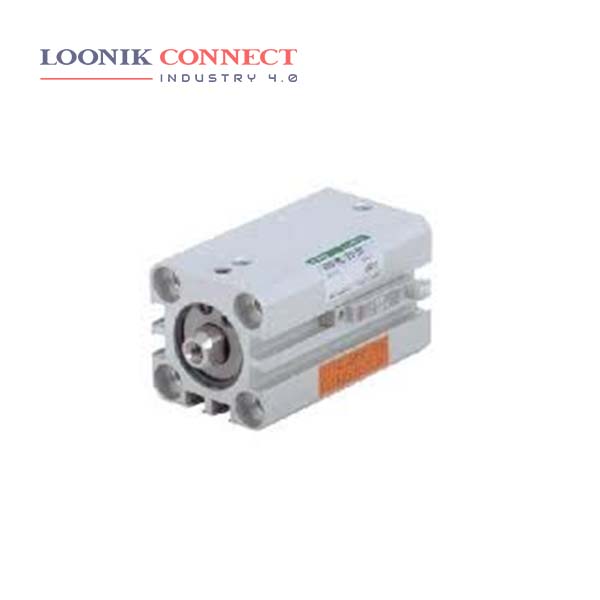

A length measuring sensor is installed onto the small cylinder. This enables work on workpieces (actuator function) and detection / inspection (defective parts check / simple length measurement) at the same time. With length measuring sensor Special magnetic sensor that can obtain a nearly linear output for the travel distance of the piston with magnet.
Intermediate detection and length measurement never achieved by normal cylinder switches are possible. Display makes inspection simple and easy Display added to analog output. Inspection results are processed directly and digitally displayed, thus eliminating the hassles of post-processing. These bases are normally circular in shape (like a circle) and the center of the two bases are joined by a line segment, which is called the axis.
A guide mechanism needs to be provided since piston rods can bend, rotate or buckle in response to forces such as lateral loads. Rodless cylinders differ from a basic air cylinder in that no piston rod extends outside the cylinder body. Instead, the internal piston is connected to an external carriage, by means of a magnetic or mechanical coupling system. A cylinder is a three-dimensional solid that consists of two parallel circular bases connected to each other with the help of a curved surface.
