- PCB terminal blocks with Push-in CAGE CLAMP connection and levers
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry

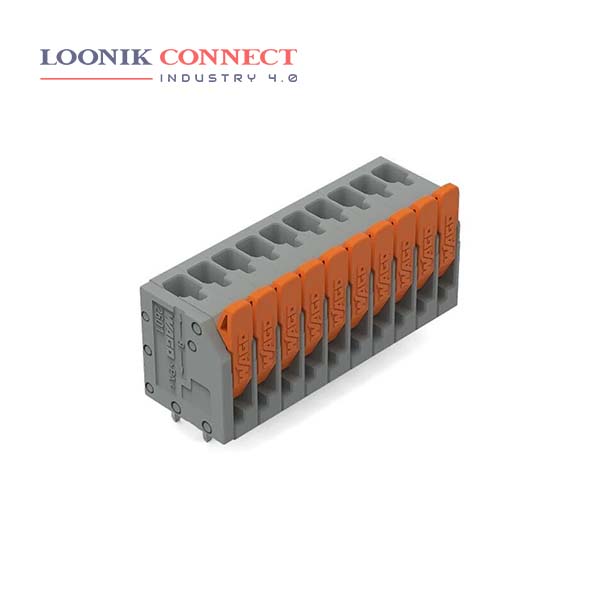

PCB Terminal Block
Ratings per: IEC/EN 60664-1
Nominal voltage (III/3): 160V
Rated impulse voltage (III/3): 2.5kV
Rated voltage (III/2): 160V
Rated impulse voltage (III/2): 2.5kV
Nominal voltage (II/2): 320V
Rated surge voltage (II/2): 2.5kV
Rated current: 17.5A
Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
Approvals per: UL 1059
Rated voltage UL (Use Group B): 300V
Rated current UL (Use Group B): 10A
Rated voltage UL (Use Group D): 300V
Rated current UL (Use Group D): 10A
Approvals per: CSA
Rated voltage CSA (Use Group B): 300V
Rated current CSA (Use Group B): 10A
Rated voltage CSA (Use Group D): 300V
Rated current CSA (Use Group D): 10A
LC Code: LC10990
