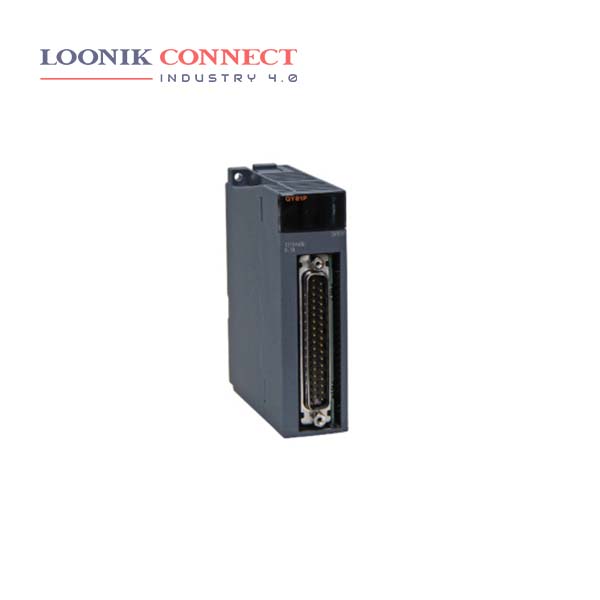

Brand MITSUBISHI Name Transistor output module (source) Model QY81P Output points 32 points. Output voltage and current DC12~24V; 0.1A/ point; 2A/ common. OFF leakage current 0.1mA. Response time 1ms. 32 points and 1 common ends. Source type. 40 pin connector. With heat protection. With the surge absorber. With fuse. With the help of sample tracking function, the starting time is shortened By using the sampling and tracking function, it is convenient to analyze the data when the fault occurs, Testing procedures for the time, etc., can shorten the time of failure analysis and start-up time. In addition, the multi CPU system also helps to determine the data transceiver time between the CPU module.
Can be used to analyze the data collected by programming tools, In the form of charts and trend charts, the data changes of the bit soft element and the word soft element can be easily displayed. And the sampling tracking results can be stored in LogViewer GX form CSV, By recording data display and analysis tool LogViewer GX to display. Ultra high speed processing, production time is shortened, better performance. As applications become larger and more complex, it is necessary to shorten the system operation cycle time.
The operation period can be shortened by the super high basic operation speed 1.9ns. in addition to achieve in the past with the control of single-chip high-speed control, The system performance can be improved by reducing the total scan time, To prevent any possible performance bias. Convenient processing of large capacity data. In the past can not achieve the standard RAM and SRAM card file register area of continuous access, the boundary of each area should be considered in programming. The SRAM 8MB extension card is installed in the high speed universal QCPU, Standard RAM can be used as continuous file register, Capacity up to 4736K words, thus simplifying the programming.
