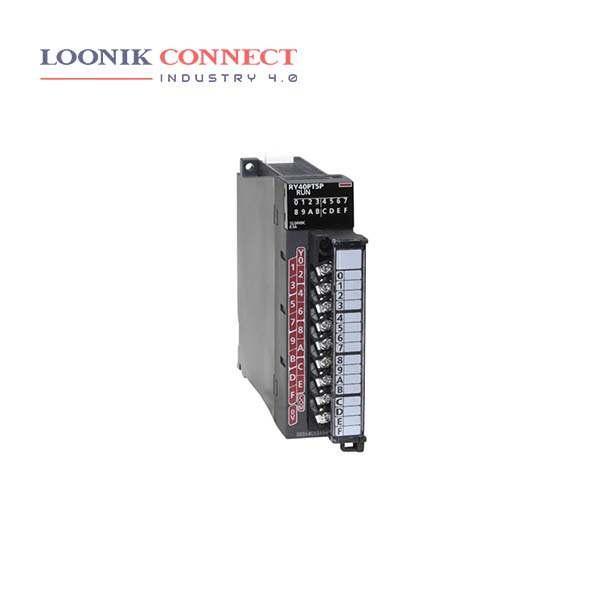

RY40PT5P

SERIES: MELSEC IQ-R SERIES
TYPE: TRANSISTOR OUTPUT (SOURCE)
POWER SUPPLY (V): 12/24
CURRENT TYPE: DC
OCCUPIED I/O POINTS ON PLC: 16
INTEGRATED DIGITAL OUTPUTS: 16
OUTPUT TYPE: TRANSISTOR
OUTPUT LOGIC: SOURCE
RATED LOAD VOLTAGE (VDC): 12-24
WIRING: SCREW
INT. CURRENT CONSUMPTION (A): 0,13
LC Code: LC11062

Availability: In Stock
Get A Free Quote





    The provided information appears to be technical specifications and features of various modules and components, likely from a specific product or system. It seems to include details about transistor output points, rated voltages and currents, response time, protection functions, external wiring connections, relay output modules, input power supply, and various other specifications. The output points consist of 16 transistor outputs with a rated load voltage of DC12-24V and a maximum load current of 0.5A per point. The response time is 1ms. The output module features mechanical relay contacts and can handle DC12-24V load transistor output types.

    Preventive maintenance can be performed based on the life of relay contacts, which can be tracked by accumulating the number of ON operations for each output point. The input power supply voltage is AC100-240V, with a frequency of 50/60Hz ± 5%. The maximum apparent power is 120VA. The IQ-R MELSEC series comprises various modules such as the CPU module, power module, substrate module, input and output module, and intelligent function module. The system allows expansion up to 7 levels with a maximum of 64 modules.

    The analog input module has 8 channels with a conversion speed of 80s/CH. It supports a voltage input range of -10V to +10V and offers high resolution (16-bit). The module features insulation between channels to prevent inter-channel current and interference current. The engineering software (Works3 GX) can be used to set critical values, detect abnormal signals, and execute event-driven programs via alarm output. The system aims to reduce downtime and maintenance costs through anomaly detection and accurate signal transceiving.
