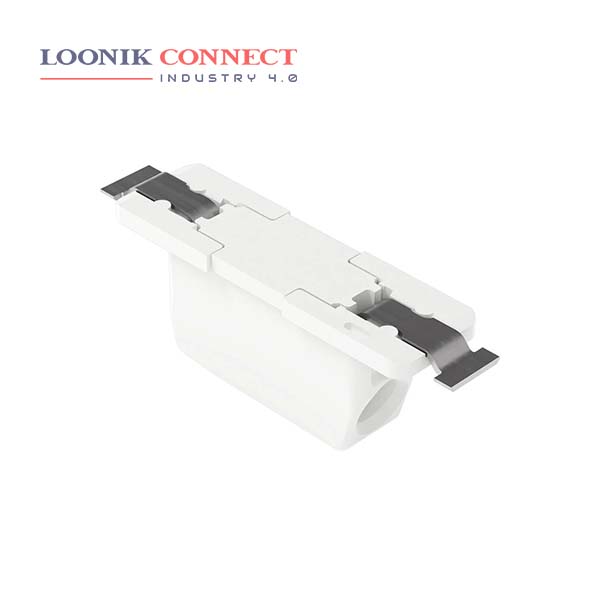

- Through-Board SMD PCB Terminal Block; 0.75 mm²; Pin spacing 6.5 mm; 1-pole; Push-in CAGE CLAMP; in tape-and-reel packaging; 0,75 mm²; white
- SMD PCB terminal block with Push-in CAGE CLAMP for back-side wiring of LED modules
- Low profile of just 1.1 mm on the module’s front side
- Push-in termination of solid conductors
- Insert fine-stranded conductors and remove all conductors via operating tool
- Reel diameter of tape-and-reel packaging: 381 mm
Through-Board SMD PCB Terminal Block
Ratings per 2: IEC/EN 60664-1
Rated voltage (III/3) 2: 200V
Rated surge voltage (III/3) 2: 4kV
Rated voltage (III/2) 2: 320V
Rated surge voltage (III/2) 2: 4kV
Rated voltage (II/2) 2: 500V
Rated surge voltage (II/2) 2: 4kV
Rated current 2: 9A
Rated voltage (UL 1977): 600V
Rated current UL 1977: 9A
Connection points: 1
Total number of potentials: 1
Number of connection types: 1
Number of levels: 1
LC Code: LC10992
