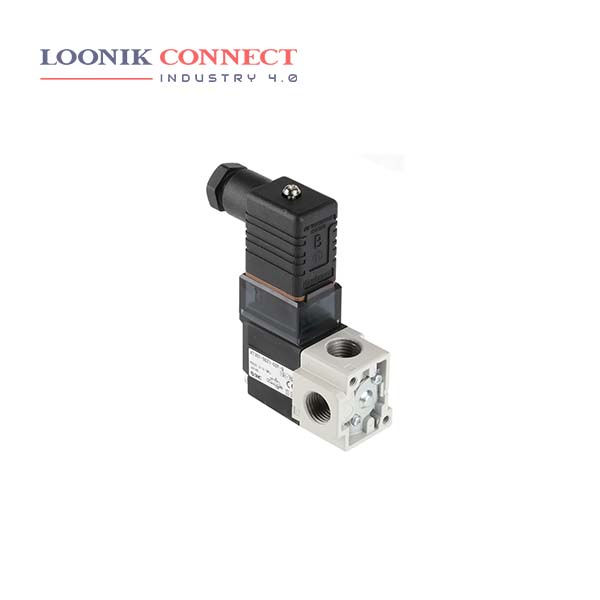

VT307-5DZ1-02 3 Port Solenoid Valve

Type of Valve – 3/2 Port Direct Operated Poppet Type Solenoid Valve

Type of actuation – Direct operated type 2 position single solenoid

Body Type – Body ported

Valve option – Standard type

Port Size – 1/4 inch

Rated Voltage – 24 VDC

Number of Coils – Single Coil

Electrical entry – DIN terminal with connector

Light/Surge voltage suppressor – With light/surge voltage suppressor (DIN terminal type only)

Bracket – None

Fluid – Air

Operating pressure range – 0 to 1 MPa (High-pressure type), 0 to 0.7 MPa (Standard type)

Low power consumption

A variety of valve functions provided by a single valve (Universal porting)

Low concentration ozone resistant
