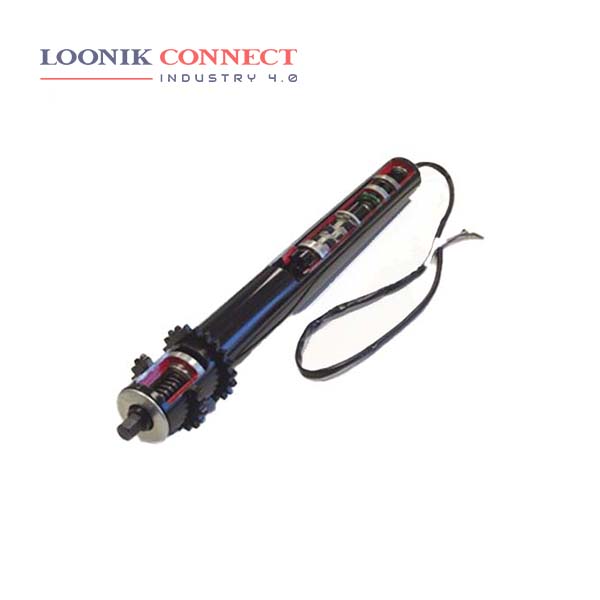

Power Moller is an internally motorised conveyor roller, that can be used wherever conveying power is needed. Because the motor and gearbox are totally enclosed in a roller tube, it provides safe, quiet, clean, and space saving driving force. In determining the correct length of the Power Moller required, you should first obtain the between the frame width of the conveyor you will be mounting the Power Moller in. All dimensions need to be converted to millimeters. Take the between the frame width and subtract 15mm to account for bearing end caps and clearances to achieve proper tube length. Subtract 21mm when using the “JQ” type shafts. For the PM635FS the deduction will be 20mm Please reference catalog pages for proper deduct measurements for specific roller options.
24v Brushless DC type, standard torque, 4.0 amps starting current / 2.8 amps rated current, Speed: 25-196 fpm approx by setting on Itoh CB series control card and 50-180 fpm approx. by setting on Itoh HB series control card (Note: operating speed is load dependent) Ready to run 10′ sections of conveyor complete with motors, sensors, power supply and all other components PM486FE series motorized rollers – the 24V workhorse of the family The AC models which have special features designed for continuous accumulation systems.
HB510P Drive Cards which are used for motor control The CB 016S7 drive cards Network ready ib-e03B drive cards You can also find Itoh Denki catalogs and CB-016S7 user manuals and others Many of the relevant Itoh Denki technical materials and manuals can be downloaded as PDF files by clicking on the relevant downloads section on this page.
